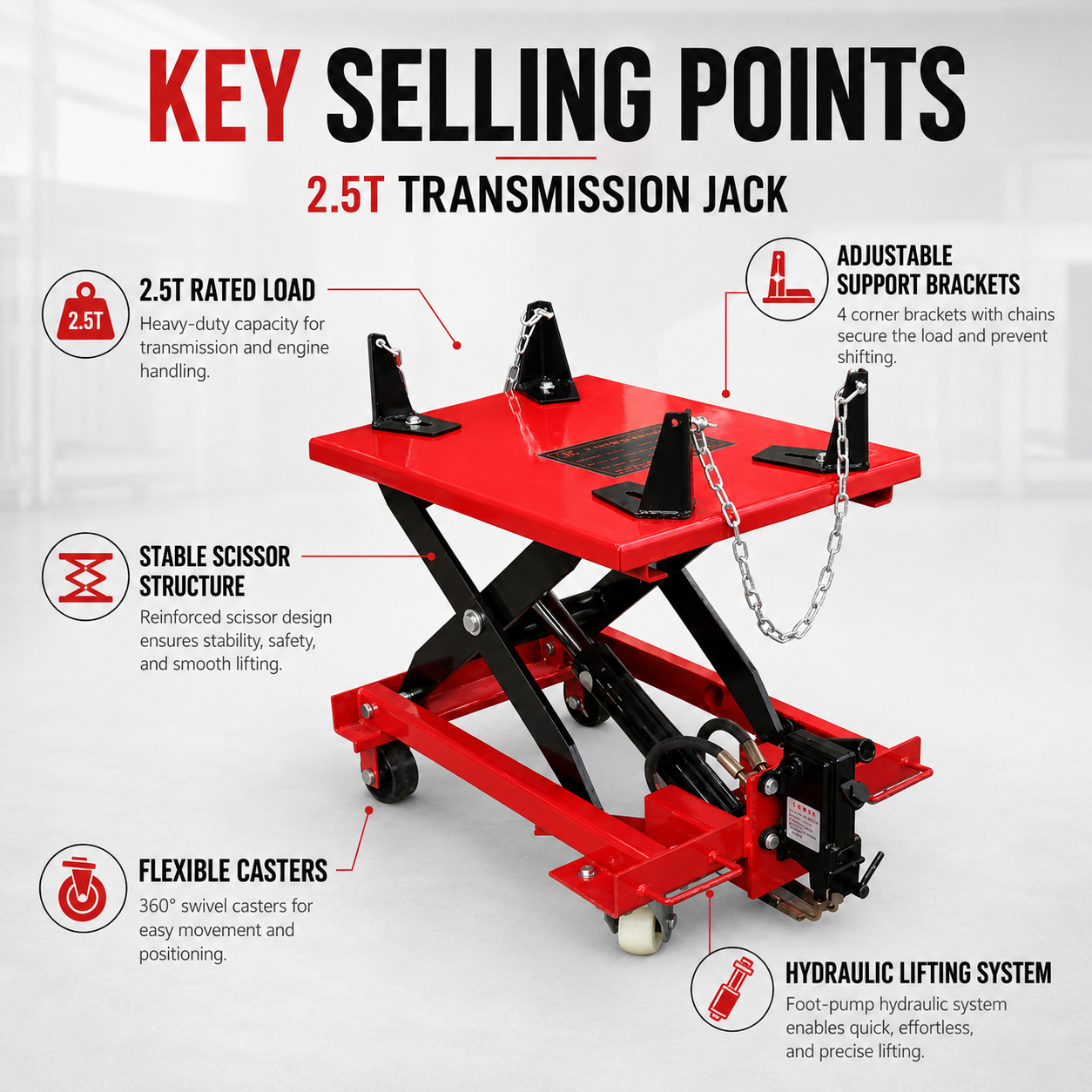

1. Heavy-Duty 2.5 Ton Capacity

The transmission jack provides a rated load capacity of:

2.5T / 2500 KG

The high load capacity makes it suitable for handling heavier automotive components such as:

• Transmissions
• Gearboxes
• Drivetrain assemblies
• Differential assemblies
• Heavy underbody components
• Suitable commercial vehicle components

The reinforced structure is designed for professional workshop use.

2. Low Profile Design

The minimum working height is only:

250 MM

The low-profile construction makes it easier to position the jack underneath transmissions and other vehicle components.

This is particularly useful when removing components from vehicles at relatively low working heights.

Benefits

• Easy under-vehicle positioning
• Suitable for low working areas
• Convenient for transmission removal
• Increased application flexibility

3. Maximum Height of 700 mm

The platform can be raised to a maximum height of:

700 MM

Combined with the 250 mm minimum height, the jack provides a practical lifting range for gearbox removal, installation and positioning.

Lifting Range

250–700 MM

This allows technicians to adjust the working height according to different vehicle structures and repair requirements.

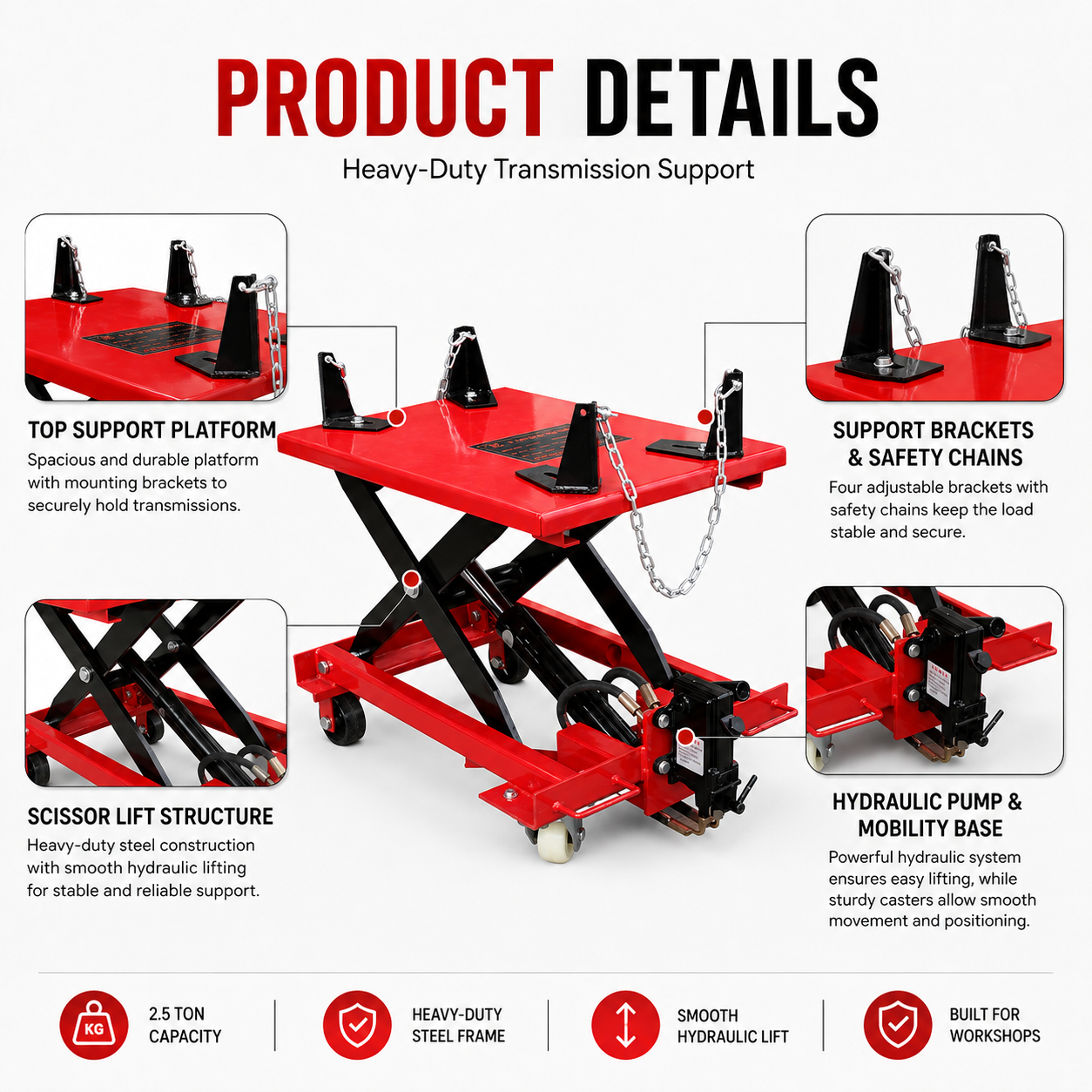

4. Large Support Platform

The jack features a wide rectangular support platform designed to provide stable support for transmissions and gearboxes.

The large platform helps:

• Improve load distribution
• Increase component stability
• Provide a larger supporting surface
• Make positioning easier
• Improve workshop efficiency

The platform is especially useful when handling irregularly shaped transmission assemblies.

5. Safety Chain System

The transmission jack is equipped with safety chains for additional component restraint.

After the gearbox or transmission is positioned on the platform, the chains can be used to help secure it during lifting, lowering and movement.

This provides additional stability when handling heavy or irregularly shaped components.

Key Benefits

• Additional component restraint
• Helps reduce unwanted movement
• Improves positioning stability
• Suitable for heavy transmission assemblies

6. Hydraulic Lifting System

The jack uses a hydraulic lifting system to provide smooth and controlled platform movement.

Hydraulic operation reduces the physical effort required when lifting heavy transmissions.

It provides:

• Smooth lifting
• Controlled height adjustment
• Reduced manual effort
• Efficient workshop operation
• Reliable lifting performance

7. Scissor Lift Structure

The jack adopts a strong scissor-type lifting mechanism.

This structure provides good vertical support while keeping the overall product relatively compact.

The reinforced scissor structure helps maintain stability throughout the lifting range.

Structural Advantages

• Strong load-bearing performance
• Stable vertical lifting
• Compact construction
• Good structural rigidity
• Suitable for heavy-duty workshop applications

8. Heavy-Duty Steel Construction

The frame and lifting mechanism are manufactured from durable steel for strength and long service life.

The reinforced structure is designed to handle demanding automotive repair environments.

Main Benefits

• Strong structural support
• High load capacity
• Durable construction
• Stable lifting performance
• Suitable for frequent professional use

9. Mobile Caster Design

The transmission jack is equipped with casters for convenient movement and positioning around the workshop.

The mobile design allows technicians to move the transmission after removal and accurately position components during installation.

It helps improve:

Mobility + Positioning + Workshop Efficiency

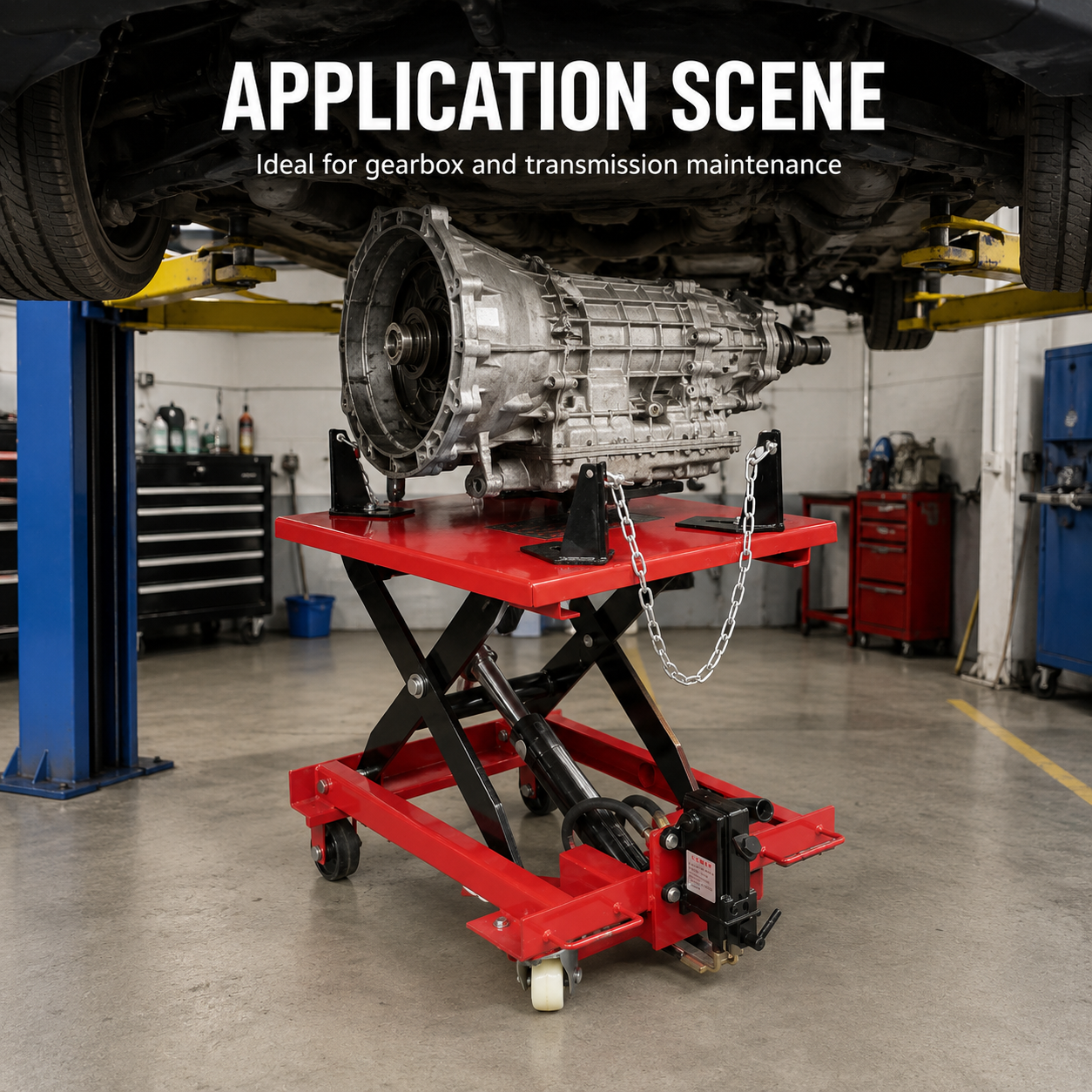

Main Applications

The 2.5T Hydraulic Transmission Jack is suitable for a wide range of automotive maintenance applications.

Transmission Removal

Supports the transmission while it is disconnected and lowered from the vehicle.

Transmission Installation

Helps raise and position the transmission during installation.

Gearbox Maintenance

Suitable for gearbox servicing, replacement and repair.

Drivetrain Component Support

Can be used to support suitable drivetrain components during maintenance.

Under-Vehicle Maintenance

Provides a stable working platform for heavy components underneath vehicles.

Suitable Working Environments

Ideal for:

• Auto repair workshops
• Transmission repair shops
• Commercial vehicle workshops
• Automotive service centers
• Fleet maintenance centers
• Vehicle repair garages
• Car dealerships
• Heavy-duty automotive service stations
• Professional vehicle maintenance facilities

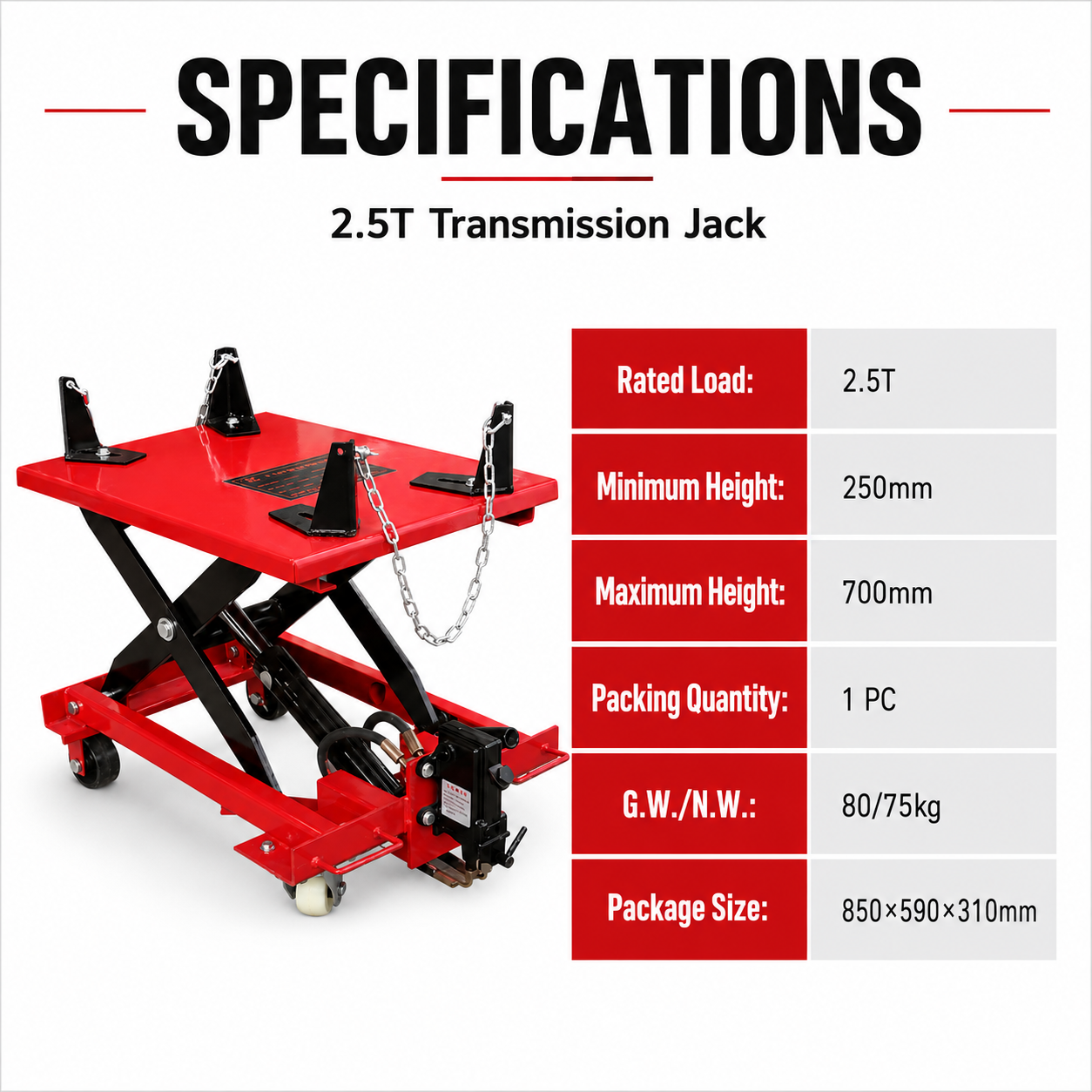

Technical Specifications
